Euleit Audio ULTIMA-01 PRE

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 96 kHz




Summary

Frequency response (from 40 Hz to 15 kHz), dB: +0.01, -0.07Excellent
Noise level, dB (A): -96.2Excellent
Dynamic range, dB (A): 96.2Excellent
THD, %: 0.0016Excellent
IMD + Noise, %: 0.0059Excellent
Stereo crosstalk, dB: -94.1Excellent
IMD at 10 kHz, %: 0.0054Excellent

General performance: Excellent

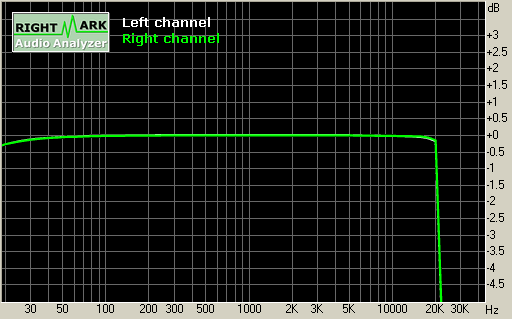

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.26, +0.01
From 40 Hz to 15 kHz, dB-0.07, +0.01

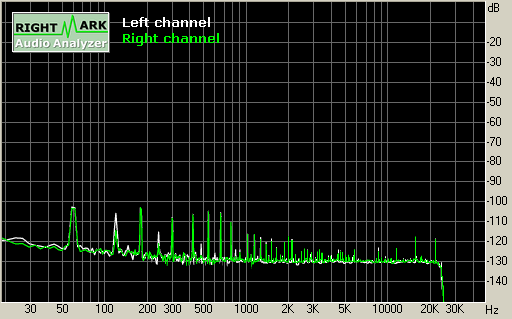

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-93.9-94.1
RMS power (A-weighted), dB:-96.2-96.2
Peak level, dB FS:-80.4-78.5
DC offset, %:0.000.00

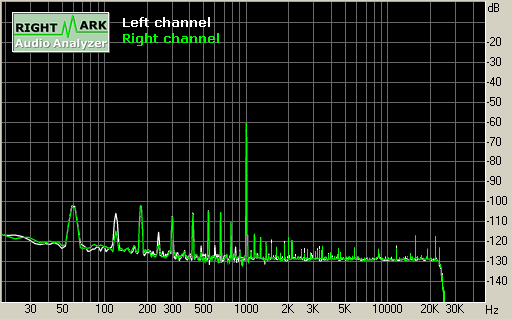

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+94.2+94.1
Dynamic range (A-weighted), dB:+96.4+96.2
DC offset, %:-0.00-0.00

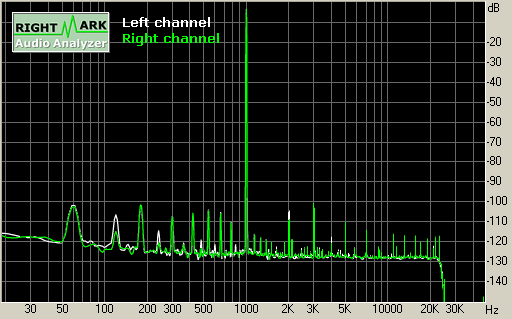

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.00170.0016
THD + Noise, %:0.00440.0042
THD + Noise (A-weighted), %:0.00390.0037

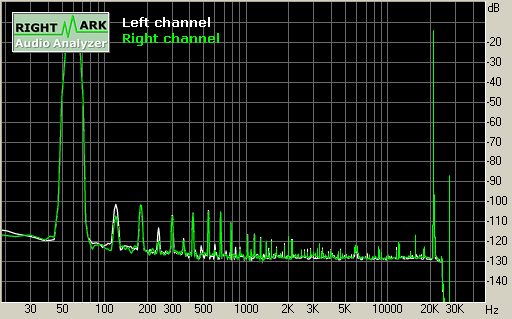

Intermodulation distortion

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.00600.0059
IMD + Noise (A-weighted), %:0.00430.0043

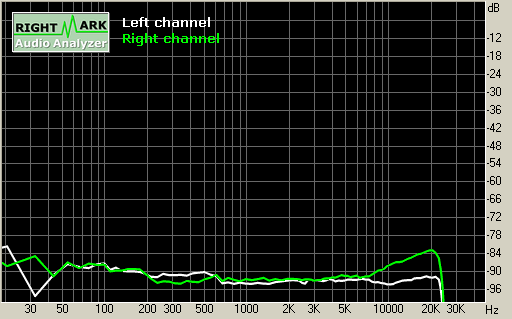

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-86-87
Crosstalk at 1 kHz, dB:-93-92
Crosstalk at 10 kHz, dB:-93-87

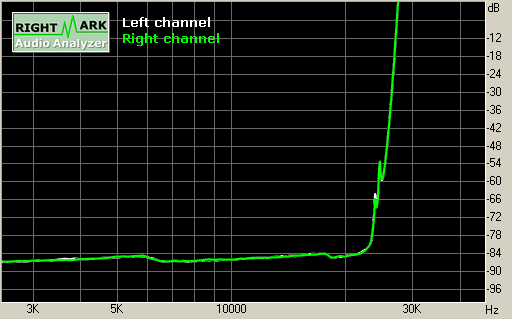

IMD (swept tones)

Spectrum graph


Parameter Left Right
IMD + Noise at 5 kHz, %:0.00550.0056
IMD + Noise at 10 kHz, %:0.00500.0050
IMD + Noise at 15 kHz, %:0.00580.0059

This report was generated by RightMark Audio Analyzer 5.5
